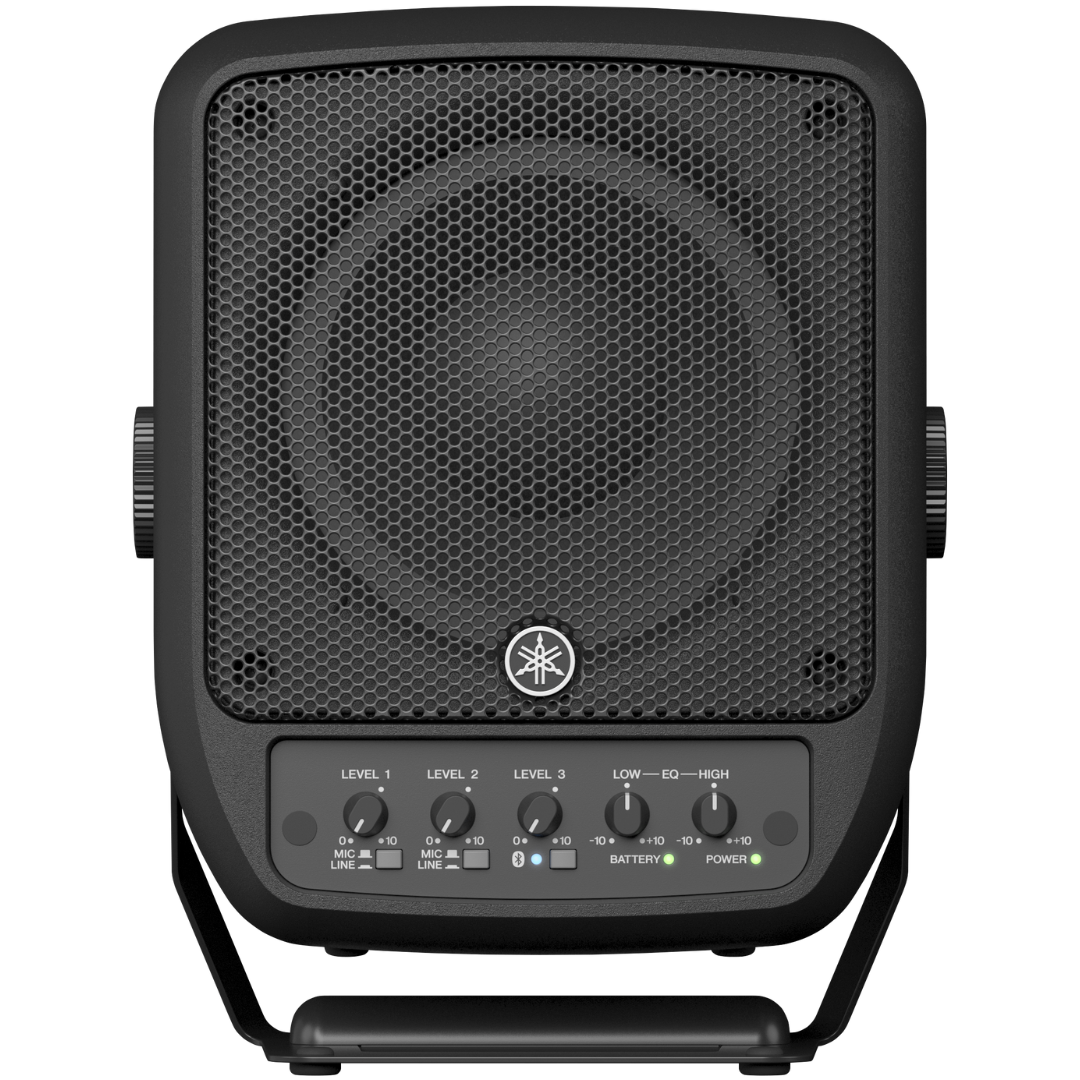

Yamaha STAGEPAS 100BTR mkII | 100W Battery-Powered PA with Bluetooth | 6.5in Coaxial Driver for Live Sound Anywhere

Yamaha STAGEPAS100BTRmkII  (Yamaha STAGEPAS 100BTR mkII)

Battery-Powered Portable PA System

Yamaha STAGEPAS 100BTR mkII is an ultra-portable PA speaker designed for performers, presenters, and musicians who need premium sound in a compact form. Whether on the street, in a small venue, or on-the-go, this unit delivers impressive sound quality and easy setup with a rechargeable battery and flexible connectivity.

Yamaha STAGEPAS 100BTR mkII Competitive Differences

• Built-in 100W Class-D amplifier for clear, powerful output
• Bluetooth 5.0 and USB audio interface for wireless and digital I/O

Yamaha STAGEPAS 100BTR mkII Description

The STAGEPAS 100BTR mkII combines Yamaha’s renowned audio technology with true portability. With a coaxial driver that integrates a 6.5" woofer and 1" compression tweeter, it delivers a balanced full-range sound ideal for solo acts, public speaking, or small performances. This unit features a 3-channel mixer with combo inputs, stereo mini input, Hi-Z support on Channel 2, and a USB Type-C port supporting 2-in/2-out audio streaming. Whether connecting instruments, microphones, or playing tracks from a device, the STAGEPAS 100BTR mkII adapts with ease. Its built-in lithium-ion battery lasts up to 6 hours, and the system can also be powered via USB-C (60W–100W PD). Designed for ultimate mobility, it weighs only 12.1 lbs and includes a rotatable handle that doubles as a stand mount for easy setup. Engineered with a durable plastic cabinet and natural convection cooling (no fan noise), it’s a reliable choice for any performer who needs to sound great anywhere, anytime.

Model Features

• 3-channel mixer: 2 mic/line inputs, 1 stereo mini input
• Bluetooth 5.0 and USB audio interface (2-in/2-out)
• 6.5” LF + 1” HF coaxial compression driver
• FIR-X crossover for optimal phase and frequency response
• Internal 60Wh lithium-ion battery (up to 6 hours)
• Rotatable bottom handle with stand mount
• 2-band EQ for easy tonal shaping
• Plastic (PP) cabinet with passive cooling

Model Specifications

• Max SPL: 120 dB
• Power Output: 100W Dynamic (LF: 93W, HF: 7W)
• Dimensions: 9.5 x 12.3 x 8.5 in (239 x 310 x 215 mm)
• Weight: 12.1 lb (5.5 kg)

What's In The Box

• Main unit (STAGEPAS 100BTR mkII)
• User manual and safety guide
