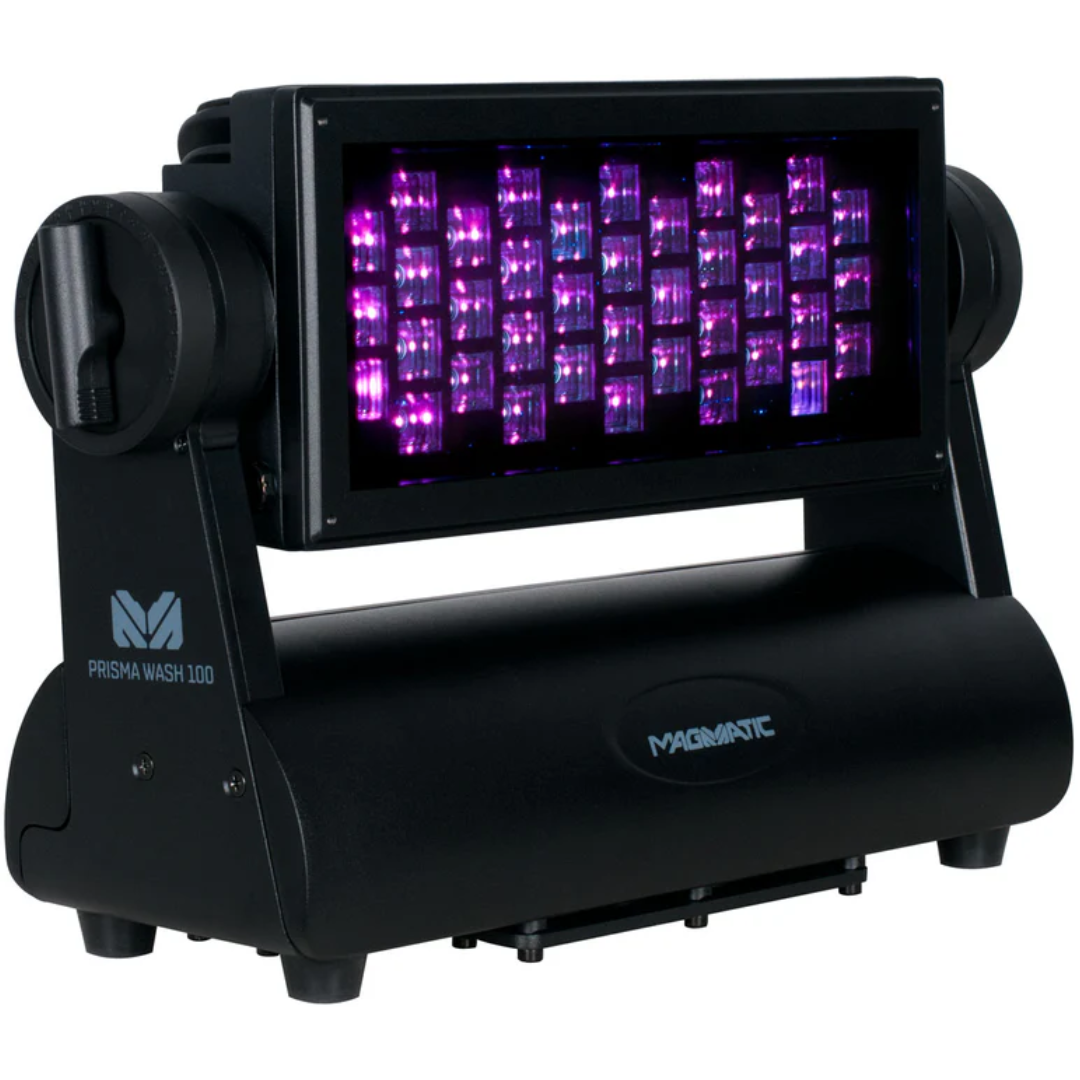

Magmatic Prisma Wash 100 | 38x 2W 365nm UV LEDs | IP65 Wide Beam Outdoor Fixture

Magmetic PSW300  (Magmatic PSW-300)

Outdoor UV Wash Lighting Fixture

The Magmatic Prisma Wash 100 is a high-powered, IP65-rated ultraviolet wash luminaire designed for permanent outdoor installations and demanding event environments. Featuring true 365nm UV output with zero visible light, a wide 90° beam angle, and rugged construction, it’s the ideal solution for immersive blacklight effects in architectural, themed, or entertainment applications.

Magmatic Prisma Wash 100 Competitive Differences

• 38x 2W UV LEDs for powerful 365nm true UV output
• 90° wide beam with scoop reflector for broad UV coverage

Magmatic Prisma Wash 100 Description

The Prisma Wash 100 delivers large-area ultraviolet coverage with true 365nm output and no visible light spill, making it ideal for venues, amusement parks, art installations, and any environment where high-output UV effects are required. Its scoop-style LED reflector design spreads the UV wash across a 90° beam angle, perfect for flooding walls, stages, or scenic elements. Housed in a durable aluminum chassis rated IP65, the unit is fully protected against outdoor conditions like dust and moisture. The onboard 2.5-inch LCD touchscreen offers easy access to configuration and control, with support for DMX-512 and RDM protocols. For maximum flexibility, the tilt angle is manually adjustable, and multiple DMX channel modes allow for integration into a variety of lighting setups. Optional accessories include a black glass filter for complete visual blackout (only UV light passes through) and extended-length IP-rated power/data cables for flexible rigging.

Model Features

• True 365nm UV wash with zero visible light output
• Wide 90° beam angle with scoop reflector design
• Manual tilt adjustment for precise aiming
• Rugged IP65 aluminum housing for outdoor use
• DMX-512 and RDM control with onboard LCD interface

Model Specifications

• LED Source: 38 x 2W UV Diode LEDs
• Wavelength: 365nm peak
• Beam Angle: 90°
• Power Consumption: 83W Max
• Input Voltage: 100–240V AC, 50/60Hz
• DMX Modes: Multiple channel options
• DMX I/O: 5-pin locking XLR
• Power In: IP65 locking power connector
• Dimensions: 17.24 x 5.82 x 11.29 in (438 x 148 x 287 mm)
• Weight: 18.5 lb (8.4 kg)
• Operating Temperature: Up to 104°F (40°C)
• Certifications: CE, cETLus | IP Rating: IP65

What's In The Box

• Prisma Wash 100 unit
• Power cable
• User manual
